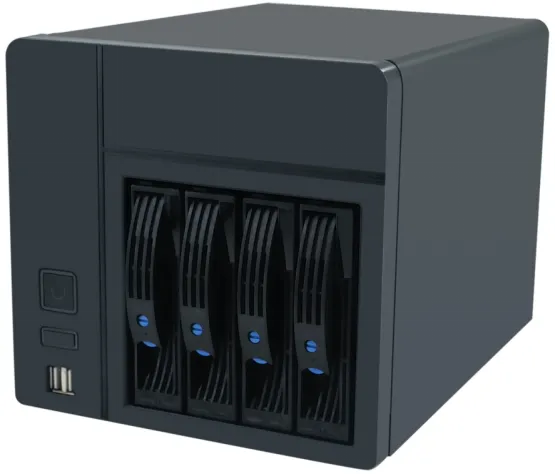

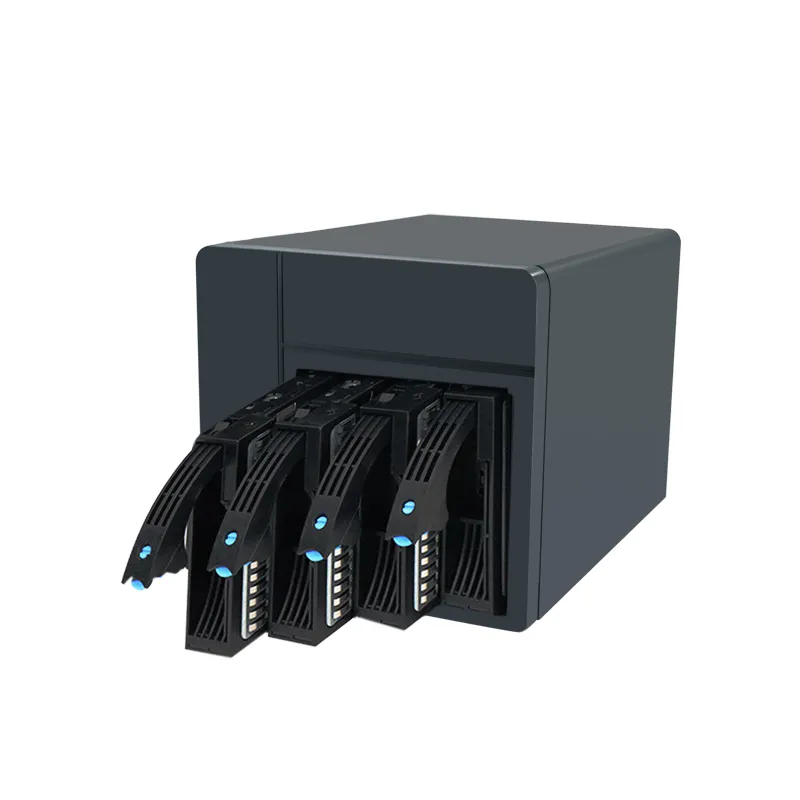

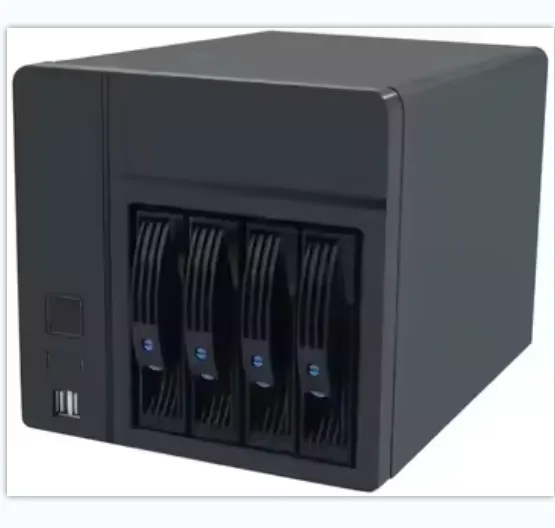

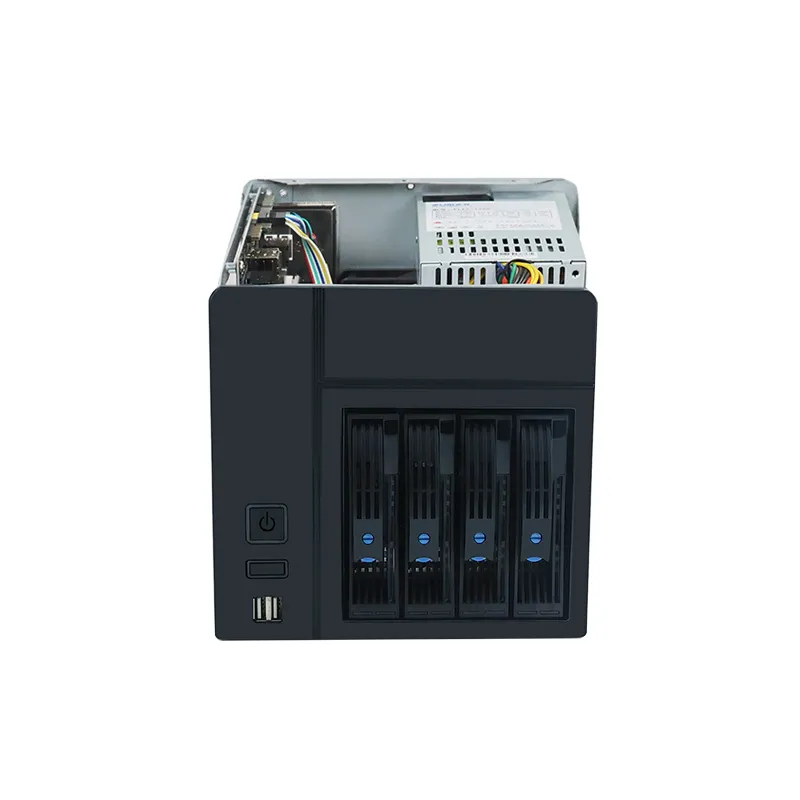

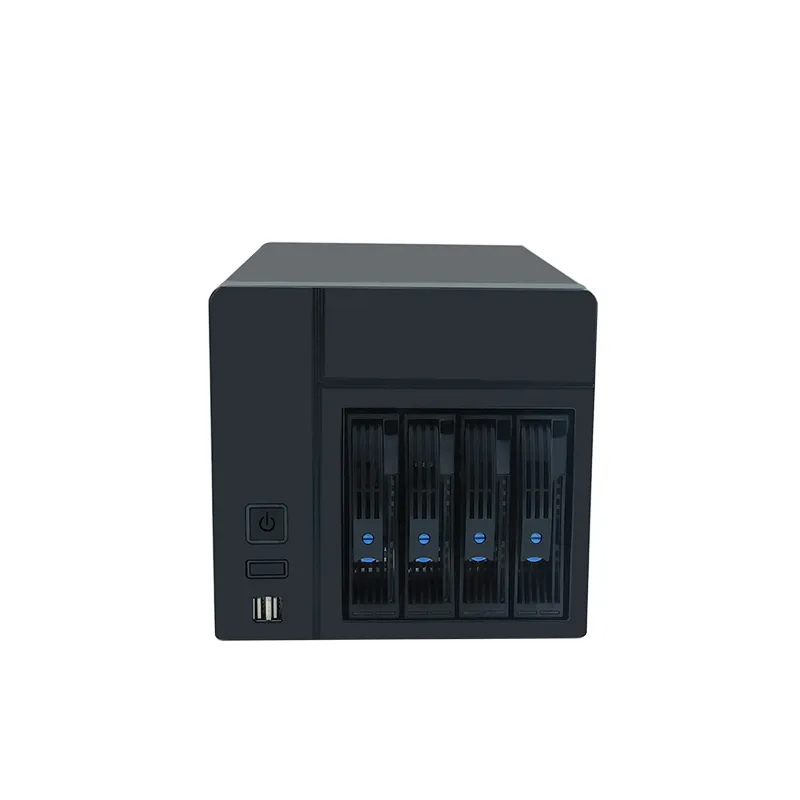

NAS private cloud hardware platform, 4 portable hard drive slots

Products Description

NAS private cloud hardware platform, 4 portable hard drive slots, optional software and hardware RAID function

Feature：

4 mobile hard drive slots NAS private cloud hardware platform；

NAS-04N100 supports hardware RAID 1 and 4K video playback；

Supports multiple NAS software such as Synology and Feiniu；

NAS-04N100 has dual 2.5G Intel network ports；

Supports Android, Apple, HarmonyOS and other mobile and tablet terminals；

Support external network penetration；

Support data backup, audio and video entertainment；

Four 2T/4T/8T/20T portable hard drives can be selected, or purchased by oneself.

NAS04 4BAY.png

NAS04 ZHU.png

NAS04 4BAY.png

Specification
Chassis	All steel structure+plastic panel, white
Front	POWER/HDD indicator light, power switch, 2USB 2.0, 2 portable hard drive slots
Back	Motherboard interface, dual fan cooling
Model NO	NAS-04N100			NAS-04M76
Motherboard	Intel N100 specialized motherboard			Intel HM76 specialized motherboard
CPU/GPU	Intel N100 4-core 4-thread			i5 3230M
Ram	4G DDR4			4G DDR3
Hard disk	64G			64G
External hard drive	Optional			Optional
RAID	support hardware RAID 1			software RAID
Network ports	dual Intel 2.5G			Single GBE
Size	190mm(W) * 260mm(L)* 200m(H)			Packing Size	300mm * 370mm * 310mm
Power supply	12V@7A ADAPTER			N.W/G.W	2.7/3.9KG(Excluding mechanical hard drives)
Installation	Desktop placement
Work and environment
Working Temperature	0～60℃	Storage Temperature	-30～75℃	Environmental humidity	0~90% Air humidity, non-condensing
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.

FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
